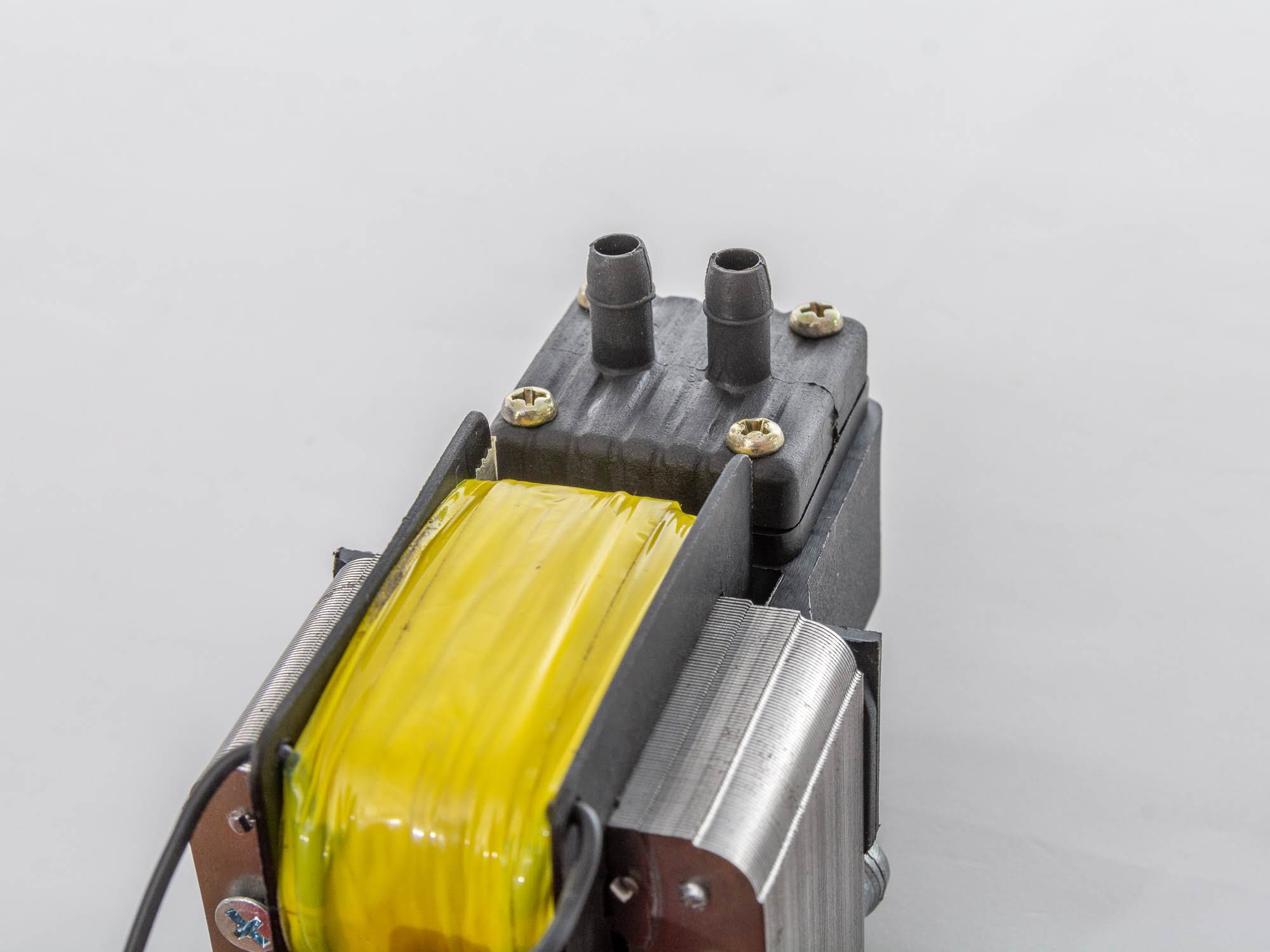

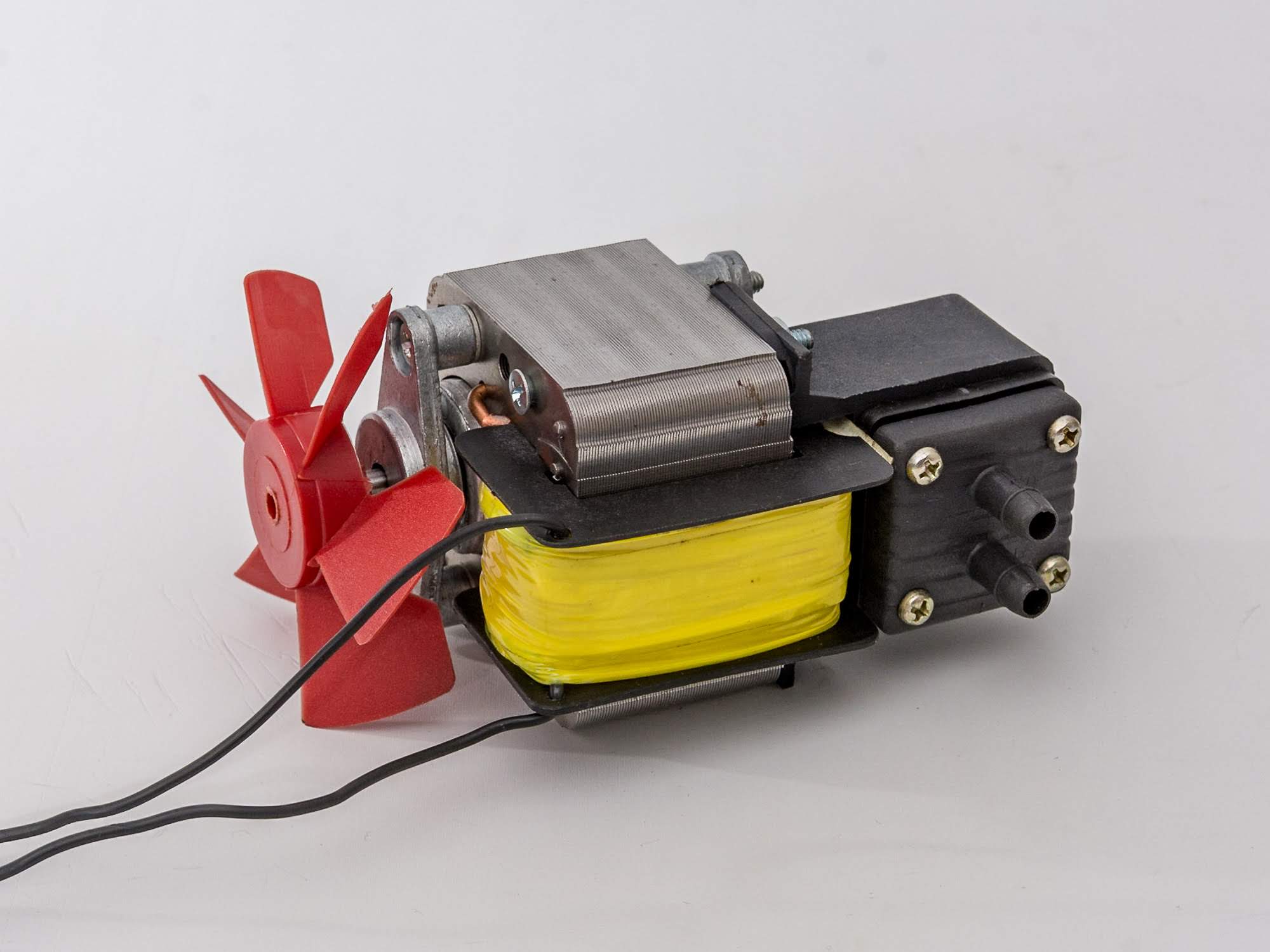

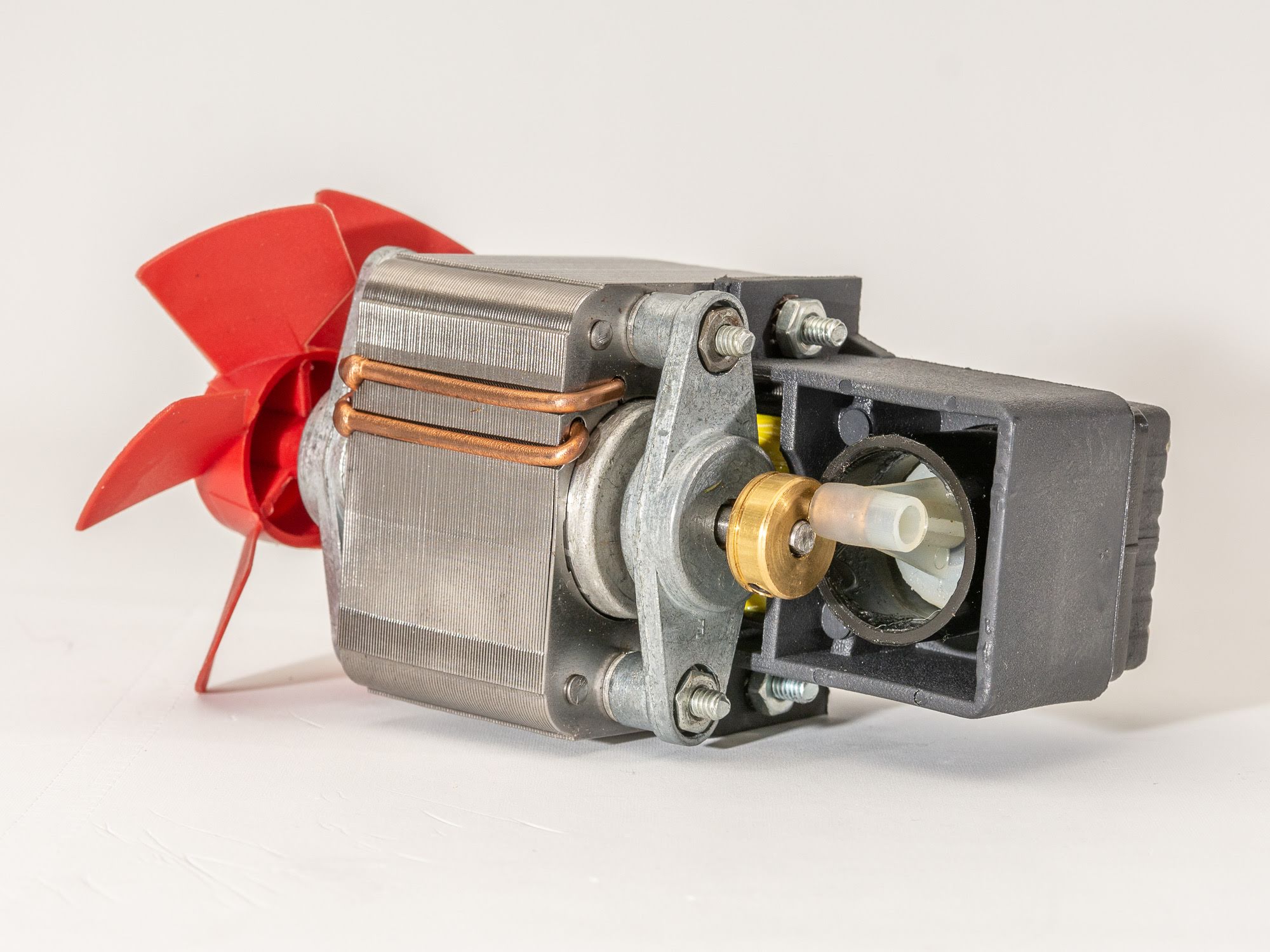

Shaded Pole Air Compressor Model 840C

General Features:

Reliable life-time lubricated Air Compressor.
Standard Voltage: Alternated Current: 110V, 220V, 24VAC or bivolt 110/220V.
Motor Speed (no load): 2900 RPM (50Hz).
Frequency: 50 Hz/ 60Hz.
Current rated: 0.41 A.
Insulation Grade: Class F (155 ^oC).
Coil rated temperature: 42 ^oC.
Coil Quality Standards: Insulated Copper Wire, IEC 60317-20/ NEMA NW1000-79C.
Dieletric Strength: 1500VCA - 1min.
Equipped with sintered bronze bearings for continuous duty.
Coil temperature: designed to a 70 ^oC ambient temperature overheat when operated in recommended service specification.
Weight: 1.170 kg.

Applications
