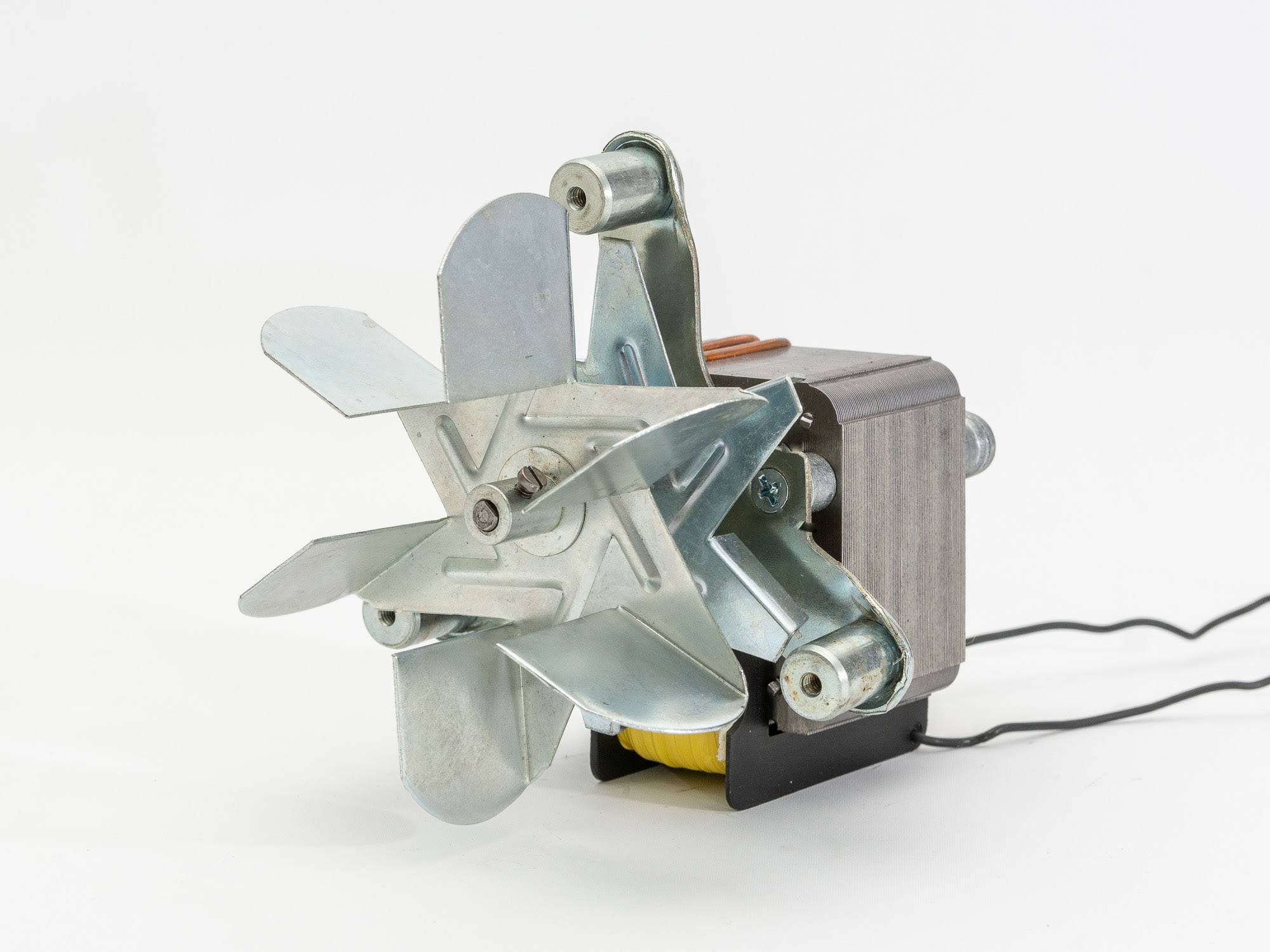

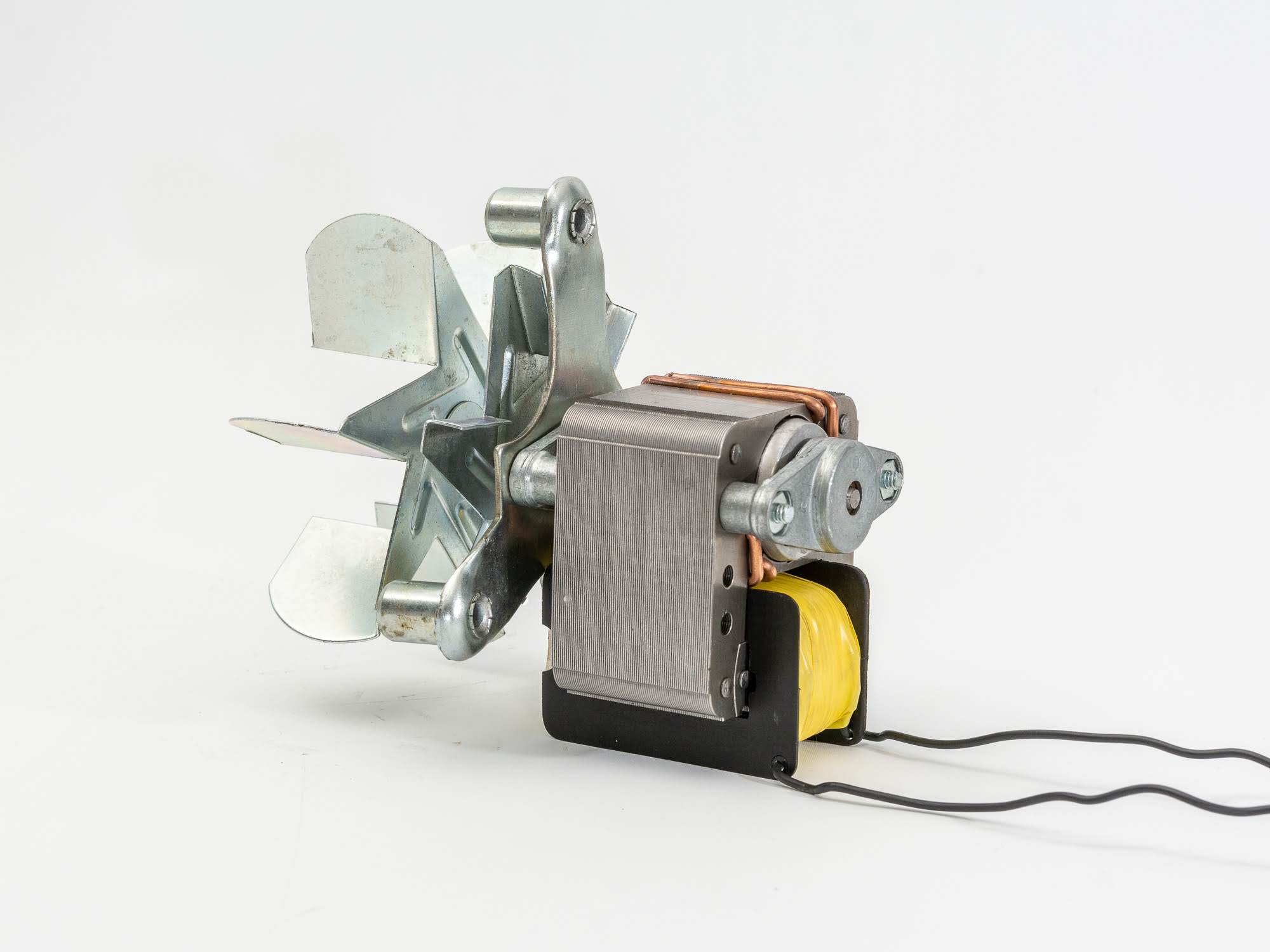

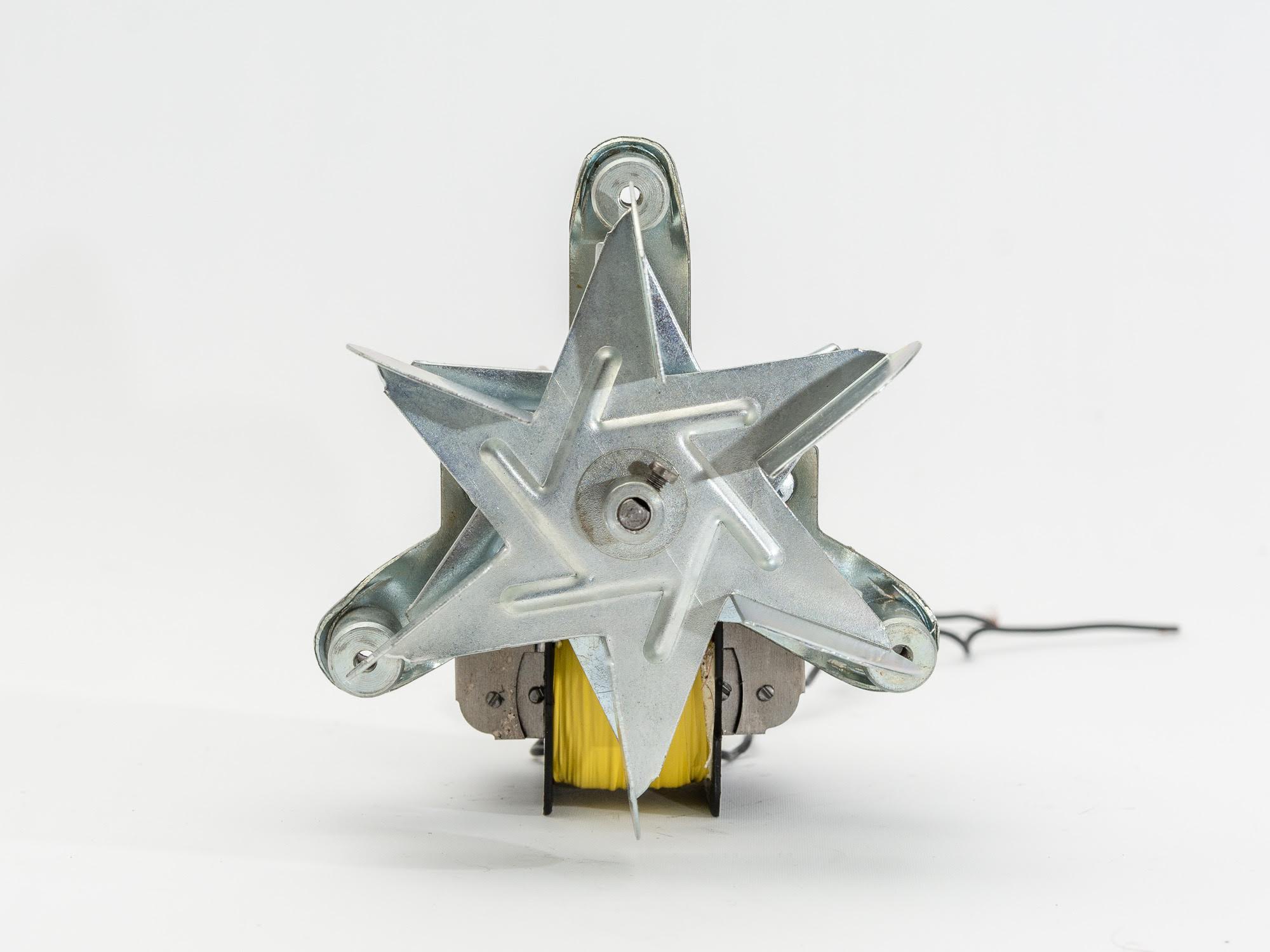

Asynchronous Shaded Pole Motor Model 840HS

General Features:

•  Reliable life-time lubricated Asynchronous Shaded Pole Gearmotor.
•  Standard Voltage: Alternated Current: 110V, 220V, 24VAC or bivolt 110/220V.
•  Motor Speed (no load): 2900 RPM (50Hz).
•  Frequency: 50 Hz/ 60Hz.
•  Current rated: 0.32 A.
•  Insulation Grade: Class H (200 ^oC).
•  Coil Quality Standards: Insulated Copper Wire, IEC 60317-20/ NEMA NW1000-79C.
•  Dieletric Strength: 1500VCA - 1min.
•  Heavy duty gear box designed under strict quality standards with hardened steel shafts and 3mm thick brass gears to ensure reliable torque units and smoothness operation during service.
•  Equipped with sintered bronze bearings for continuous duty.

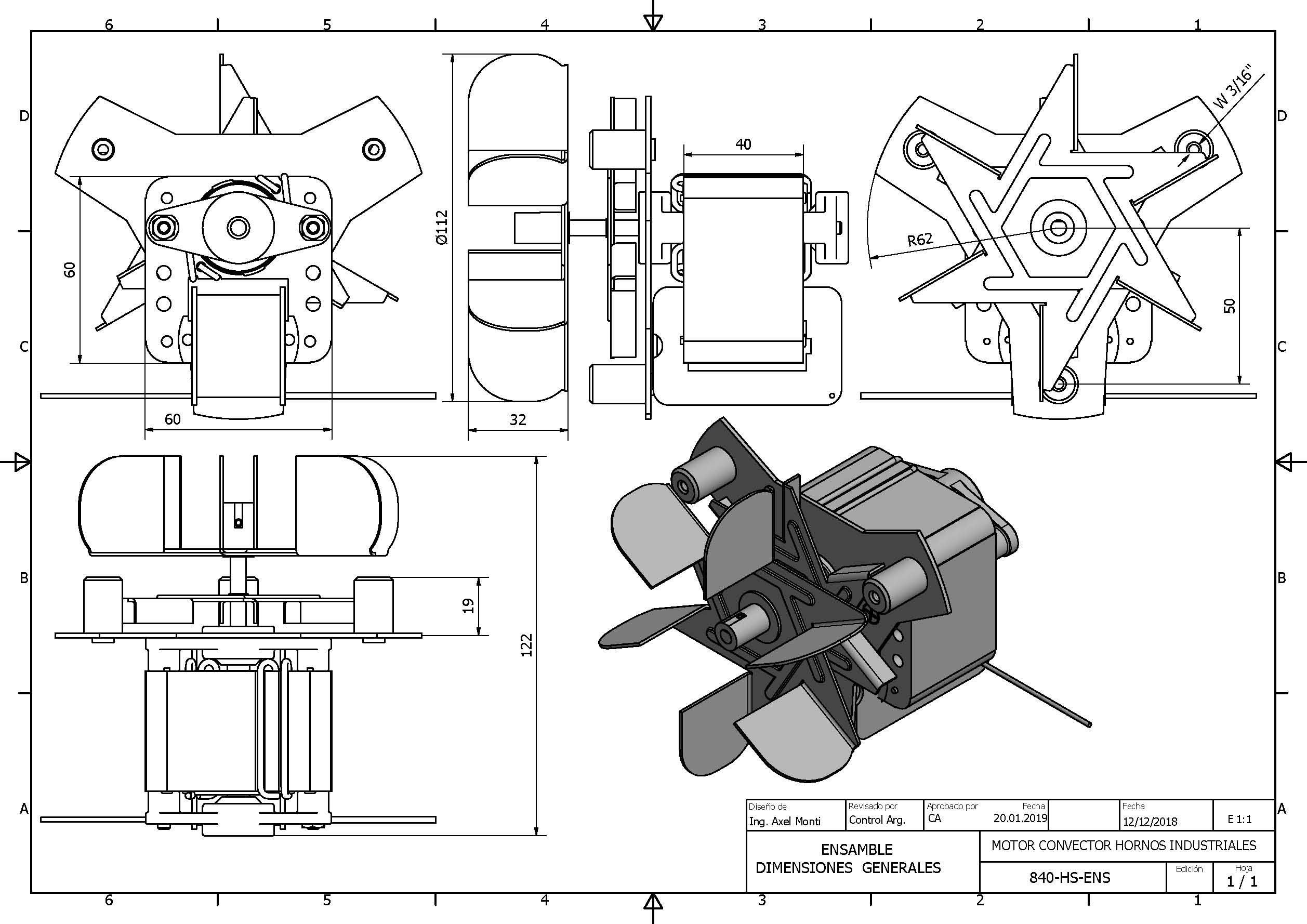

•  Aluminum or steel Turbine 104mm in diameter.
•  Coil temperature: designed to a 70 ^oC ambient temperature overheat when operated in recommended service specification.
•  Weight: 0.700 kg.

Applications

•  Cooling applications in cooking and medical devices, frost-free application in refrigeration, incubators, cooling for medical sterilization equipment, etc.

.
